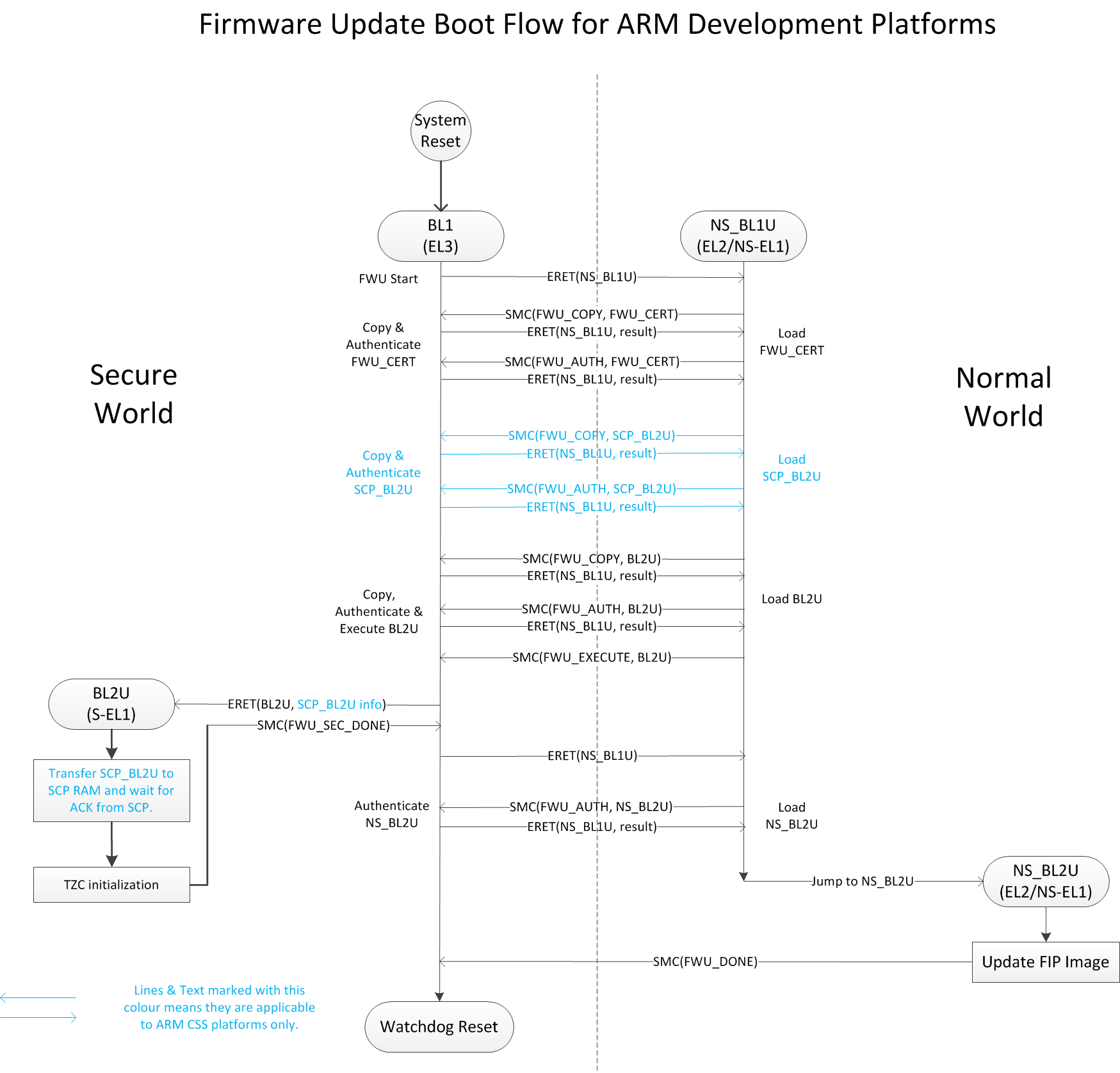

fwu_flow.png (revision b7f6525db642d533327403ff8130eb91190f2e98) - OpenGrok cross reference for /rk3399_ARM-atf/docs/resources/diagrams/fwu_flow.png

xref: /rk3399_ARM-atf/docs/resources/diagrams/fwu_flow.png (revision b7f6525db642d533327403ff8130eb91190f2e98)
